MINI SLITTER
The equipment is intended for slitting of rubbersed textile cords named „cap ply or spiral breaker“. The equipment can be equipped with one or two let off stations and variable number of winding stations up to 18 positions. The use of two let off stations reduces shut-down during loading of input slit material. Further, it can be equipped with one, two or three winding stations. It means that input material is slit into 6, 12, or 18 parts. It is required to have width of input material 60, 120, or 180 millimetres (at the width of „spiral“ 10mm).
| INPUT | |
| Roll width | 300 mm |
| Roll diameter | 800 mm |
| Rubber strip thickness | 2,5 mm |
| Material tolerance | ±0,5 mm |
| Roll weight | 180 kg |
| Slitting speed | 100 m/min |
| OUTPUT | |
| Strip width | 8 – 12 mm |
| Roll diameter | 450 mm |
| Material tolerance | ±0,5 mm |
| Roll width | 450 mm |
| Roll weight | 40 kg |

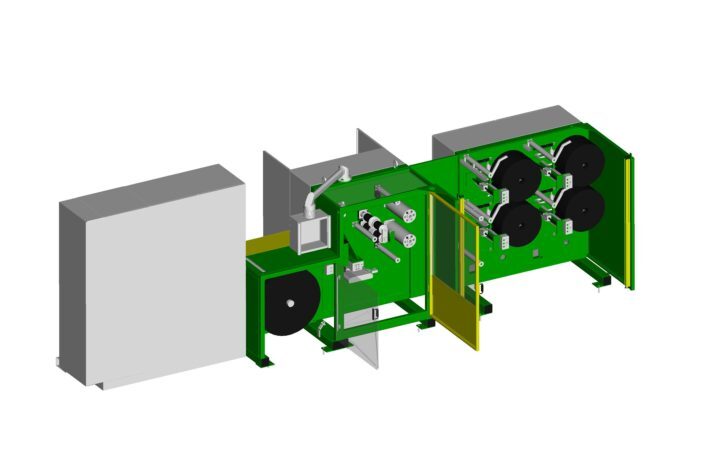

- Let off Station
- Slitting Station

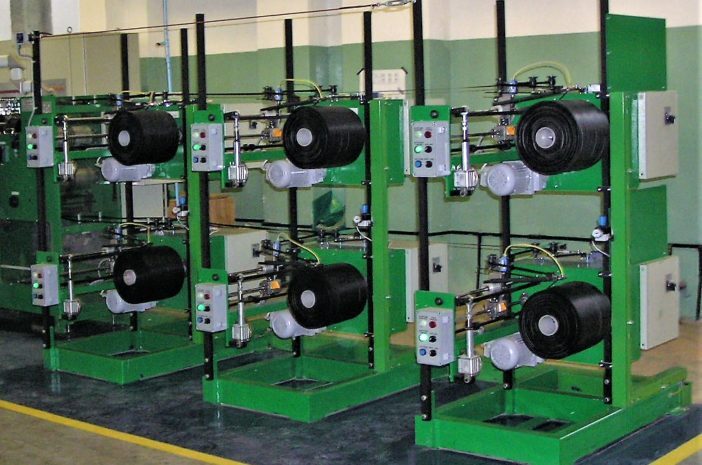

- Winding Station with Six Winding Positions
- Main Control Cabinet
- Roller removing trolley
