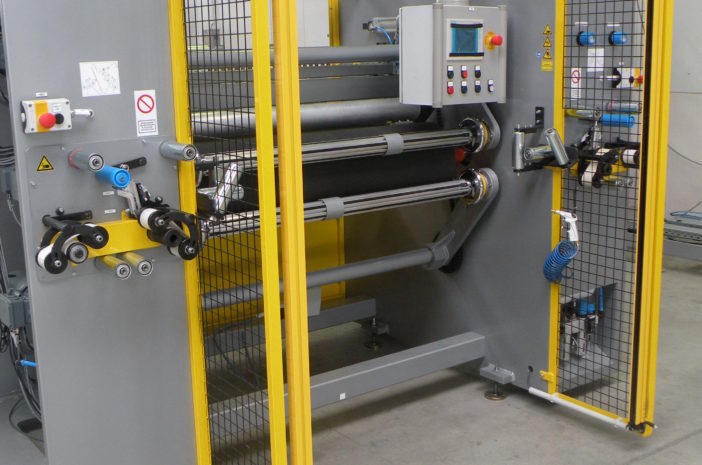

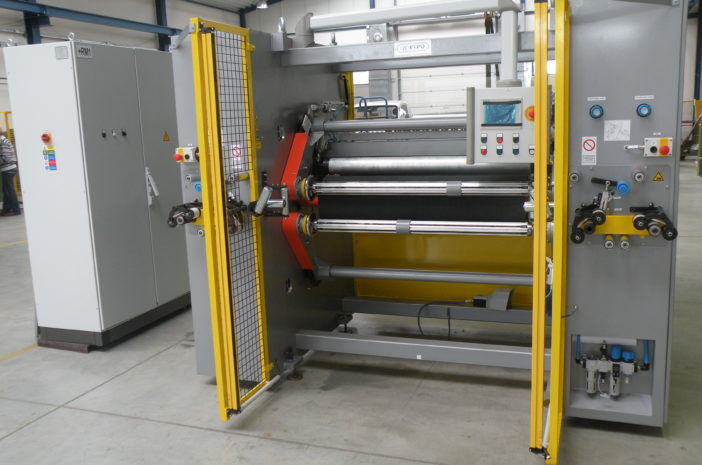

MAXI SLITTER
The machine is intended for preparation of semiproducts for tire production. The machine is designed for slitting and winding of material with maximal working width 1000 mm. The slitting process applicable on the machine should be as a crush or shear depend on teh used material.
| INPUT MATERIAL | |
| Sheet width | 1600 mm |
| Sheet diameter | 1200 mm |
| Mother roll weight | 1500 kg |
| LINNER | |
| Max. width | 1600 mmkg |
| Max. diameter: | 800 mm/min |
| OUTPUT MATERIAL | |
| Max. diameter | 800 mm |
| Max. total weight of rolls on shaft | 300 kg |
| Minimum roller width | 20 mm |
| Width tolerance | ±1 mm |
| Inside diameter of shell | 75 - 81 mm (3”) |
- Let off Station & Liner Winding for rubberised textile sheet
- Slitting Station - crush cutting, shear cutting & razor blades system

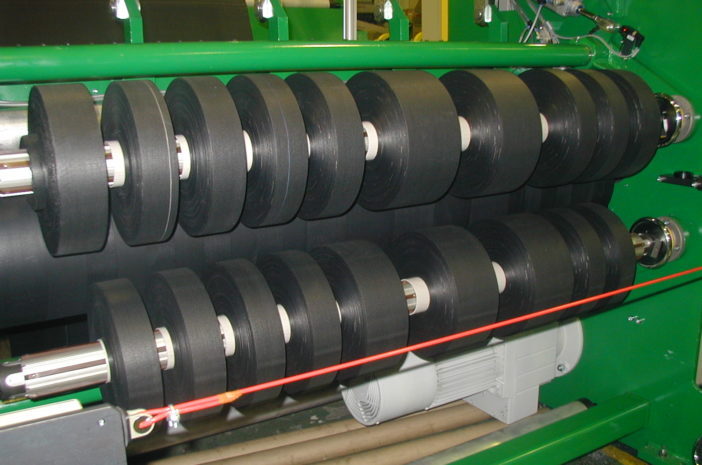

- Winding station for slitted material
- Side scrap collector systems
- Main Control Cabinet
- Let off Station for gum sheet
- Shaft unloading unit
