DUPLEX APEX EXTRUSION & APEX APPLICATOR & AUTO APEX APPLICATOR

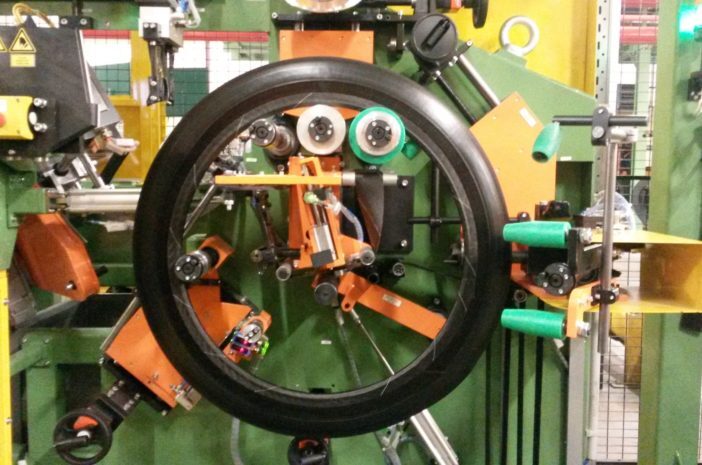

Bead Apexing Machine APEX - TBR offers automated application of extruded duplex apex profile on bead
wire, connected with the application of flipper and cold/hot strip as an option. The advantage of this system
is hot application apex profile from duplex extruders on the bead. The process of application is fully
automated and controlled by integrated computer.
| Bead range diameter | 17,5‘‘ - 24,5‘‘ |
| Apex height | 50 - 125 mm |
| Apex width | 11,5 - 25 mm |
| Flipper width | 45 - 80 mm not applicable |
| Cycle time | 22 – 25 sec. |
- Automated apex application
- High productivity
- Flipper application together with apex profile
- Computer controlled process
- Recipe driven system
- One operator control system
- Duplex extruder system
- Feeding conveyer with metal detector
- Temperature control units
- Take off conveyer
- Scale conveyer of extruded apex
- Spiral cooling drum device
- Festoon

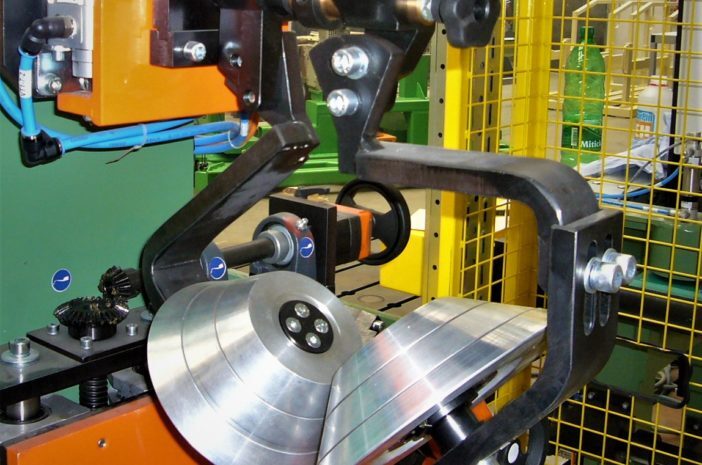

- Apex applicator
- Electric control cabinet and control system
- Applicator of cold/hot rubber strip
- Manipulator
- Automatic flipper applicator (for 17,5’’ - 25’’)
