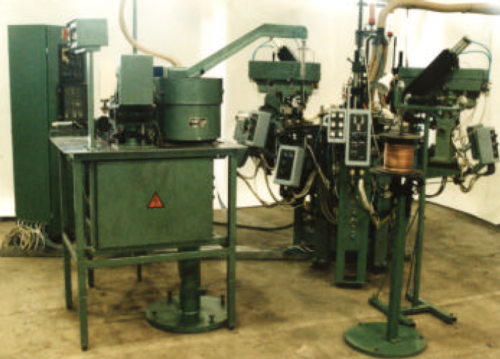

CARBON BRUSH MACHINING AND ASSEMBLING LINE
The line is intended for machining carbon brushes for electric rotary motors.
| Carbon brush material | metallographite, electrographite, graphite |
| Carbon brush dimensions | 5x4x10 mm – 16x10x36 mm |
| Carbon brush shape grinding diameter | 18 – 45 mm |
| Carbon brush neck diameter | 4 – 10 mm |
| Carbon brush neck height | max. 10 mm |
| Copper cable diameter | 0,3 – 2,4 mm |
| Copper cable length | 15 – 120 mm |
| Cooper cable hole diameter | 1,1 – 4 mm |
| Copper cable hole depth | 3 – 20 mm |
- Line feeding with vibration feeder
- Inserting brushes in the rotation line
- Radius grinding
- Carbon brush marking
- Rotary line with individual machines mounted on the frame
- Control system with control panel
- 5 technological operations
- Q =5 000 pcs/8 hour
- 1 pracovník pre vkladanie kief do vibračného podávača
